4x8 Gantry Build...

Apocalypse Fabrication

I have been meaning to put this up for a while now. I would like to get suggestions and help from others that have been through the same process. I have read all of the builds here as well as other sites. Hopefully I have familiarized myself enough to get this up and working without much trouble! #-o We received the gantry kit on October 24th and it came crated beautifully... Some of the washers and bolts didnt end up in baggies like the others, but I think I found them all... [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-5135-1351174407801.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-5135-1351174407801.jpg[/IMG][/URL] [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-23483-1351174408628.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-23483-1351174408628.jpg[/IMG][/URL] I used Matt's prints that he sent me a while ago and fabbed up a sketchup model that would be more customized to my needs. I will be putting this in a 24x24 garage and still parking my wife's car in there, so space is at a premium! I have two renditions, since budget was a concern... we will be building the table in steps. Eventually it will look like this... possibly: [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=CNCTableCompleteFront.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_CNCTableCompleteFront.jpg[/IMG][/URL] [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=CNCTableCompleteBack.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_CNCTableCompleteBack.jpg[/IMG][/URL] However, the first stage limits the steel rack, the desk and product drawers.... [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=CNCTableStageOneBack.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_CNCTableStageOneBack.jpg[/IMG][/URL] [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=CNCTableStageOneFront.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_CNCTableStageOneFront.jpg[/IMG][/URL] Eventually, the complete version will have a pressurized compartment for the electronics and dust filters to keep everything cool and clean.

Apocalypse Fabrication

Bringing us up to date... Bandsaw made the cuts nicely: [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-35418-1351663364656.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-35418-1351663364656.jpg[/IMG][/URL] Pieces cut: [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-40626-1351743369265.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-40626-1351743369265.jpg[/IMG][/URL] Easy way to cut slats... I chickened out going more than 8 at a time though: [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-33476-1351663363034.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-33476-1351663363034.jpg[/IMG][/URL] I have been welding with my new Miller Dynasty 200 Tig. Please go easy on the weld quality; this is my first project and I am learning with every tungsten grind ><. After wrestling with the fact that the concrete floor is no where near within 1/16" of flat... I put the table upside down up on the welding table that I made for myself previously... Finally a semi flat (we wont call it perfect, blanchard grinding is on my wishlist) surface. [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-6962-1352358076614.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-6962-1352358076614.jpg[/IMG][/URL][URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-2945-1352359335124.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-2945-1352359335124.jpg[/IMG][/URL] After only 2-3 arguments with my loving wife... we got it squared, level, and plumb... well as close as a tape measure will tell you. Legs came next: [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-38999-1352359333419.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-38999-1352359333419.jpg[/IMG][/URL] I dont think this is the intended usage of pipe stands... but it worked well... dangerous, but well... [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-10390-1352359324955.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-10390-1352359324955.jpg[/IMG][/URL] Flipping the table: [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-14303-1352359398419.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-14303-1352359398419.jpg[/IMG][/URL] [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-10688-1352359303675.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-10688-1352359303675.jpg[/IMG][/URL][URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-10944-1352359334271.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-10944-1352359334271.jpg[/IMG][/URL]

Apocalypse Fabrication

Leveling feet: [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-13666-1352438874745.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-13666-1352438874745.jpg[/IMG][/URL] Feet welded on... bringing us to today: [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-1561-1352438872164.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-1561-1352438872164.jpg[/IMG][/URL] I'd love to hear opinions on the design and any helpful tips on setup... I do have a few questions that Ill post next There are plenty more pictures on the photobucket acct... feel free to look around or ask here if you'd like to see something or clarify it...

Apocalypse Fabrication

How did everyone level the rails when mounting them to the sides? I have a digital Wixey level, 4 ft, 2 ft, and bullet levels. Do I need to get a couple 5-6 ft levels to be able to span the 55"?

jeepsr4ever

If your table top is flat and your table is level then level it off the table top. After you start bolting the gantry to the side plates you have a decent allowance. You will be able to hear in the motor sounds if your off on one side and this is done by jogging the machine from front to back with either the keyboard or controller. This is one way the other way is with a levelling laser or a long level. The top base is the fastest way to do it.

Apocalypse Fabrication

Thanks... I dont trust laser levels... well, the cheapie I have. Seems like a good excuse to get a 6 ft and 8 ft level!

Apocalypse Fabrication

Matt: Should there be any paper instructions with the gantry kit? I thought it may be in bubble wrapped items, but I just opened everything and couldnt find any. I have looked through the forum here and I do see instructions listed around, but nothing that comes across as a coherent "start here" list? Also, can I get a list of what should be included in the full gantry kit? I dont have a drill jig, bit, or tap? Wondering if I am missing these items or are they not included? Thanks Jason

Apocalypse Fabrication

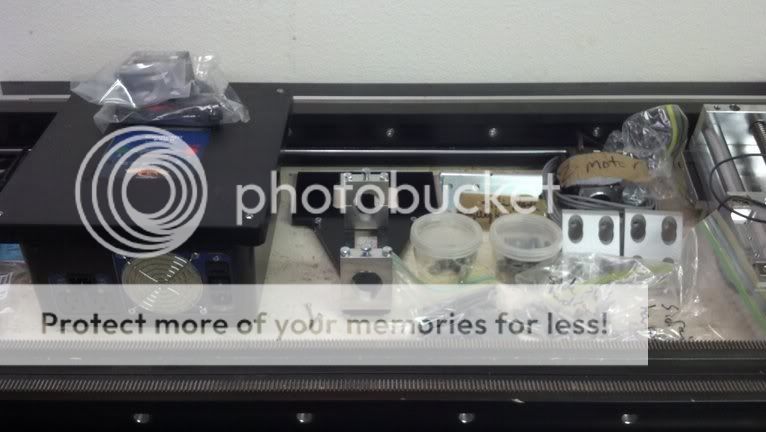

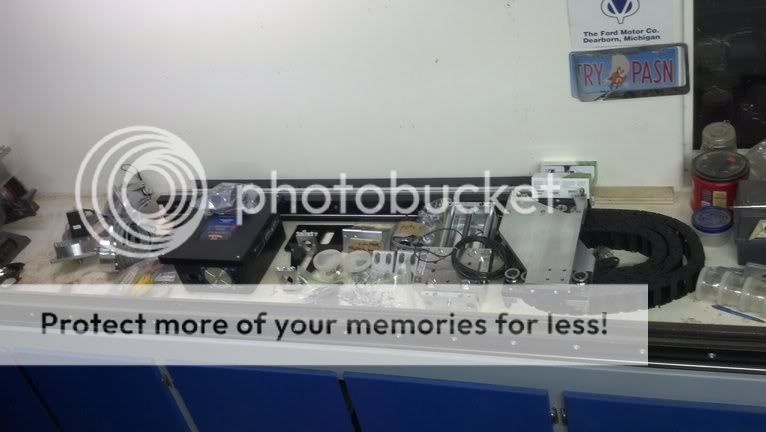

Here are pics of everything that I received: [IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/photobucket-37670-1352597673501.jpg[/IMG] [IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/photobucket-23092-1352597672685.jpg[/IMG] [IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/photobucket-37621-1352597671841.jpg[/IMG] [IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/photobucket-30548-1352597670992.jpg[/IMG]

jeepsr4ever

It is online 1st thing first, the gantry build [URL]http://www.bulltear.com/forums/showthread.php?19161-Gantry-kit-users-(Instructions[/URL]) Next build your table from these three available prints 5x10 [URL]http://www.bulltear.com/forums/showthread.php?19129-2012-and-newer-5x10-table-prints[/URL] 4x8 [URL]http://www.bulltear.com/forums/showthread.php?19135-2012-and-newer-Model-4x8-CNC-Plasma-table-prints[/URL] 4x4 [URL]http://www.bulltear.com/forums/showthread.php?19128-2012-and-newer-4x4-table-prints[/URL] Next if you want to use the switches for the magnetic torch breakaway follow these guidelines for the switches [URL]http://www.bulltear.com/forums/showthread.php?19193-Limit-and-Home-switches[/URL] Next setup your software (we suggest using our settings for Mach 3 and Sheetcam) You can however find all kinds of quick tips on youtube (our videos will be up fairly soon) [URL]http://www.bulltear.com/forums/showthread.php?19154-2012-and-newer-software-setup-and-instruction-MACH[/URL] Your support disk will also have valuable info on understanding your settings and if you stuck please dont hesitate to call we know these inside and out.

jeepsr4ever

We also quit giving out the drill jig. The tap size is 5/16-18 and the drill size is .265 or close. It is BEST and EASIEST to use a transfer punch for centering the hole. Here Part # 3374A28 Mcmaster.com $2.85 21/64" transfer punch

ssray

If that's the first time you've done any welding I'd say it looks pretty good especially taking on TIG the first time. Good work! BTW, I have a Syncrowave 200 ... Nice machines! Scott [quote]I have been welding with my new Miller Dynasty 200 Tig. Please go easy on the weld quality; this is my first project and I am learning with every tungsten grind ><.[/quote]

Apocalypse Fabrication

[QUOTE=ssray;132504]If that's the first time you've done any welding I'd say it looks pretty good especially taking on TIG the first time. Good work! BTW, I have a Syncrowave 200 ... Nice machines! Scott[/QUOTE] Not the first welding, but my first project with the tig. I have welded for years, O/A, Arc, and Mig. Syncrowaves are great. I almost got a 200 or 250, but decided to go inverter at the last moment. Thanks Matt... I will get that transfer punch ordered and get back rolling with this project. I'm kinda disappointed that the drill jig isnt included in the kit anymore, the other builders seemed to be very happy with it.

jeepsr4ever

Yes half were happy and half had big problems with the jig spinning in the hole then them breaking their drills in the hole on their tables (not good)

Apocalypse Fabrication

[QUOTE=jeepsr4ever;132517]Yes half were happy and half had big problems with the jig spinning in the hole then them breaking their drills in the hole on their tables (not good)[/QUOTE] Our router went dead tonight... so I am on my phone. Hopefully tomorrow I can post a big update with lots of questions and pictures.

Apocalypse Fabrication

I am still waiting on pics to upload, but a couple questions for now: I dont see anywhere in the instructions that mentions installing the motors, the z axis, or the magnetic torch mount. We had to do a lot of spying on YouTube to figure out the orientation of parts and approximately how to hook things up. Matt, would you mind if I posted my own version of a comprehensive instruction manual? I think assembling a gantry kit should not be this difficult.

jeepsr4ever

You can absolutely post up. Just a couple quick things we do before items ship and also some info 1. The magnetic plate is set to your Z axis and does not need anything special to setup. The unimount torch mount allows the use of .9-1.5" diameter torches. A 5/16-18 bolt holds in the smaller diameter. 2. The motor mounts are attached one way and there is a left and right. You will note the slot configuration. Attaching the motors can be a little tricky because one side uses a square nut and a slot for retention and the other side uses a flange nut. There are 2 different length socket head capscrews and they are assembled on the reduction units. When you buy a gantry kit the motors are usually not attached to the reduction units and require you to take loose the socket head capscrews and attach the motors. Taking it all apart can make assembly a little tougher. 3. We used to install the Z axis motor however we found that the assembly is very long to ship.

Apocalypse Fabrication

OK, so I had a day off yesterday and got quite a bit done on the table. I ran around Fresno getting tap and transfer punch on wednesday night. It's always interesting running around an industrial area getting things bought right at 5 pm ><. First, I unpacked my side rails and their hardware (in a ziploc baggy)... I found 38 5/16-18 Allen Screws (18 per rail and 2 extra?), 1 metric? Allen screw (it wasnt 5/16-18 ), and 1 bushing. I later determined this "bushing" to be the drill guide, which was a great help. I didnt even use the transfer punch. [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-55665-1353080409405.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-55665-1353080409405.jpg[/IMG][/URL] If people in the future would like to make their own drill guide, the dimensions are 17/64 inside diameter, .5440 outside diameter, and .9490 long. I would recommend making that at least 2 inches long though. It was pretty hard to hold with 2 fingers as I was drilling the holes. My drill has a built in level which helped me a lot with binding against the guide. [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-10374-1353079763925.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-10374-1353079763925.jpg[/IMG][/URL][URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-17262-1353079758838.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-17262-1353079758838.jpg[/IMG][/URL][URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-15710-1353079757155.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-15710-1353079757155.jpg[/IMG][/URL][URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-15725-1353079754537.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-15725-1353079754537.jpg[/IMG][/URL] The allen screws for the rails took a 1/4" hex bit to drive them. [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-55495-1353080403325.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-55495-1353080403325.jpg[/IMG][/URL] I used a 17/64 drill and a 5/16-18 tapered tap. My 1/4" cordless impact drive did a great job of tapping without blisters. I just had to go SLOW. I didnt break a single tap (I bought 3 just in case), but I could see how it would be easy to do so. I also had a shop vac nearby to suck up all the chips from drilling and tapping as I went. [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-15726-1353079755475.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-15726-1353079755475.jpg[/IMG][/URL]

Apocalypse Fabrication

Since I had my 2 year old daughter as my only helper… I had to get creative with mounting the rails to the table sides. First, I leveled the table and used the adjustable feet to get it as close as possible. My new 6 and 8 foot levels helped tremendously. [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-14984-1353079762215.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-14984-1353079762215.jpg[/IMG][/URL] Then I browsed the internet to see where on the 111” side the 110” rail should be mounted. From my research, I concluded that it should be flush with the cantilevered end of the table. I hope that was right, if not, they can be moved… just a lot of drilling and tapping. To mount the rails, I measured to the 8th hole from one side (approximate middle of the rail). It was 58.125”. I transferred that measurement onto the table side. Then I measured the overall width of the rails at ~3.5” with the mounting holes at ~1.75”. I wanted between 5/8 and 7/8 stick up over the table side, so I just measured down 1” on the table side and used a center punch; this would give me ~3/4” stick up of the rail above the table frame. [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-15712-1353079759679.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-15712-1353079759679.jpg[/IMG][/URL] This would be my first drilled and tapped hole. I lifted one side of the rail and got it mounted with the one “middle” screw. [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-14295-1353079761350.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-14295-1353079761350.jpg[/IMG][/URL][URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-14315-1353079756298.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-14315-1353079756298.jpg[/IMG][/URL] Then I put the 8 foot level on the rail and brought the high end of the rail down to a position that was level so I could clamp it with the vise grips. [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-8015-1353079757991.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-8015-1353079757991.jpg[/IMG][/URL][URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-15708-1353079760531.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-15708-1353079760531.jpg[/IMG][/URL][URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-15110-1353079753671.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-15110-1353079753671.jpg[/IMG][/URL] I then proceeded to drill and tap holes in the table frame, using the drill guide, from the center out on the rail; constantly checking for level. [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-55830-1353080411123.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-55830-1353080411123.jpg[/IMG][/URL] Now, onto the second rail: This rail needs to be parallel, level, and square with the first rail. Knowing that my table frame was at very least, square, I just measured 58.125” from the end (which would correspond with the 8th hole in the rail, just like before). For the depth measurement, I used the 6 foot level from the other rail across the table. I shimmed it until it was level. Then I measured 1.75” down from the level. That intersection would be my first drilled and tapped hole for the second rail. I followed the same process on the second rail as I did on the first; constantly checking for level both directions. [/URL] [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-55664-1353080406770.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-55664-1353080406770.jpg[/IMG][/URL] [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-55486-1353080404201.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-55486-1353080404201.jpg[/IMG][/URL] [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-55666-1353080402482.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-55666-1353080402482.jpg[/IMG][/URL] [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-55487-1353080401625.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-55487-1353080401625.jpg[/IMG][/URL] I found this method to be much easier to handle with just one person than what was mentioned in the instructions. I don’t know if it was the correct way to do it, but I did manage to make everything level, parallel, and square. Using my 8 foot level, I noticed that the table frame had a crown in it. [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-53694-1353080410266.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-53694-1353080410266.jpg[/IMG][URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-53795-1353080407613.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-53795-1353080407613.jpg[/IMG][/URL] It would be a good idea for anyone welding up the frame on their table to keep checking this as they welded it up. I didn’t have the level at the time I was welding. In response, I think I will shim the water pan to keep it close to the level of the rails (which I know is correct), but I have complete faith that the avhc of the z axis will keep everything in line. OK… major hurdle of the rails COMPLETE!

Apocalypse Fabrication

Now, we needed to put the side plates on. My devoted wife was here to help me from this point forward. My side plates had the roller bearings already installed and “preloaded”. However, I did not realize they didn’t have the wipers on them until after I had installed them on the rails. First… importantly… wipe down the inside of the rails and get them as clean as possible. I imagine that any dirt between the rollers and the rail would be a bad thing; not to mention a stray metal shaving from the drilling and tapping! Next, remove the black allen screw that will keep you from putting the side plates on. I think, going off memory, these were 5/32 allen. [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-15109-1353079763063.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-15109-1353079763063.jpg[/IMG][/URL] Anyways… I don’t know what size man you need to be to “bump them on with the palm of your hand”, but I am not that guy! I got them up to the 3rd wheel and bumped them, hit them with a rubber hammer, and then finally kicked them on squarely with my boot. The last option got them onto the rails and rolling. [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-55489-1353080398884.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-55489-1353080398884.jpg[/IMG][/URL] At this point, I installed the wipers onto the side plates. I believe these little screws took a 3/32 allen, but I will double check that. I just tipped the wipers into the rail and then installed them squarely to the side plates. 2 on each side plate. Using this method, you don’t have to worry about damaging the wipers by tearing them on the end of the rail. [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-77343-1353080964823.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-77343-1353080964823.jpg[/IMG][/URL] [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-648-1353080969132.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-648-1353080969132.jpg[/IMG][/URL] [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-59540-1353080963125.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-59540-1353080963125.jpg[/IMG][/URL] [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-7752-1353080958883.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-7752-1353080958883.jpg[/IMG][/URL] OK… side plates ON! Oh wait… did we install them correctly? [URL=http://s264.photobucket.com/albums/ii175/slprlx/CNC%20Table/?action=view&current=photobucket-2659-1353080963984.jpg][IMG]http://i264.photobucket.com/albums/ii175/slprlx/CNC%20Table/th_photobucket-2659-1353080963984.jpg[/IMG][/URL] At this point we scoured YouTube again; trying to find a video that was panned out enough to see the gantry orientation. Bulltear’s forum was down, so I couldn’t look there. I finally remembered that Matt had posted a pretty good overall shot of a 4x8 table on his sale ad on Pirate4x4. Of course, the side plates were on backwards compared to this stock photo…. Repeat all of the above >< OK… side plates ON! (again)
