MY 401 Machining & Parts List (Parts Pics Added)

82Waggy

Thought I would post this up as it is fairly complete and may help others organize their engine projects. Note that this build incorporates the Edelbrock MPEFI kit wich includes a distributor, fuel pump, and other items not listed seperately below. I laid the list out in an Excel spreadsheet with costs (not included below) to keep track of everything. Below the list of parts is my finished Blueprint specs. CORE 401 Block AMC Crank AMC Rods AMC SHORT BLOCK MACHINE WORK Block Clean Up & Magna Flux Inspection CHS Deck Squaring CHS Bore +.040, Hone With Torque Plate CHS Crankshaft surfacing, .010/.010 CHS Rod Sizing CHS Bush Rods for .9272 Floating wrist pin CHS Balance Rotating Assembly CHS SHORT BLOCK COMPONENTS Hypereutectic Pistons, 28cc D-cup KB354 UEM-KB354040-8 Harmonic Balancer Rebuilt OEM 910 4501I Flexplate, 401 to 727 Pioneer Rod Bushings Custom Rod Bolts ARP Piston Rings, Molly Top Sealed Pwr SLP-E-302K40 Freeze Plugs Pioneer Main Bearings Clevite 77 Rear Main Seal Fel Pro Rod Bearings Clevite 77 Cam Bearings Dura Bond 1/2"Head Bolt & Tranny Locating Dowel Set PAS Crank Oil Slinger PAS Torque Converter Bolt Kit ARP Flexplate to Crank Bolts ARP HEADS Dog Leg Heads, 090 Castings AMC Cleaning & Magnaflux Inspection CHS Mill Facing CHS Bowl Sizing CHS Un-shroud Valves/Open Chambers To 63-65cc's CHS Machine for Guide Plates CHS Install Hardened Exhaust Seats CHS Valve Job, three angle with 30deg seat CHS Stainless Valve Set, 2.025/1.68, 3/8 Stem Valve Springs, Locks & Retainers, Lifters Crower 84045 Valve Guides, Bronze CHS Exhaust Seats CHS Valve Seals Rocker Studs, 7/16" ARP Port Matching ME Guide Plates PAS Brass Freeze Plug Kit Pioneer Head Gaskets,.045 compressed, 4.275 bore Victor Head Bolts AMC LONG BLOCK COMPONENTS Timing cover (nickle) W/Pump, Midplate, Adapter Bulltear Timing Cover/Water Pump Gaskets ROL Alum Water Pump Flowmaster 1781 Timing Chain Set Rollmaster CS7110 Stainless Fasteners, Pan, Mani, Pumps, Etc PAS 7qt Deep Sump Oil Pan Bulltear Deep Sump Pick Up Tube Bulltear Pan Gasket, SCE Dip Stick Bulltear Oil Filter WIX 51258 INDUCTION AND VALVETRAIN Cam, 253/260 dur@.006, 485/502 lift, 112LSA Engle 5254H Push Rod Set, Hardened Roller Rockers Harland Sharp Performer RPM Pro Flo MPEFI Edelbrock EDL-3531 Thermostat Housing, Billet RobbMCPerformance Thermostat Housing Gasket Distributor Drive Gears, Bulltear PCV Grommet HELP 42060 Intake Manifold Gaskets Stainless Oil Fill Tube/Billet Cap Bulltear Valve Covers, Nickle Plated Bulltear Valve Cover Gaskets EXHAUST Headers, Tri-Y, Ceramic Coated Thorley DTE-616YC ELECTRICAL Mini Starter MSD 6A Ignition Coil (E-Core) Mallory MAA-30440 FINISHED BLUEPRINT SPECIFICATIONS 408cid Cylinder Bore (+.040) 4.205 Deck Height (-.007") 9.201 Reconditioned Stroke 3.675 Reconditioned Rod Length 5.855 Piston Compression Height, 1.510 Piston TDC To Deck Clearance, Neg# = Piston Above Deck -0.0015 Head Gasket Compressed Thickness 0.045 Quench Distance 0.043 Head Gasket Bore 4.275 Compression Ratio w/65cc chmbr, 28cc Dish, per KB calculator 9.160 All right, if you must know I will have spent just under nine grand for all of the above, including the purchase and shipping of core components from across the country. Current status is that all block related machine work is done and I am now waiting on head work to be finished up. Once heads are done I will need to aquire the last 2200 worth of the parts on the list to finish up - so get ready MC cuz most of those remaining parts will be coming from you!

Dusty

:lo1l: :lo1l: :? :sa: =D>

Blown7

You forgot PIC'S!!!!!!!!!!!!!!!!!!!! I can't read so well but I like pretty pics of parts. Jeff

82Waggy

[quote=Blown7]You forgot PIC'S!!!!!!!!!!!!!!!!!!!! I can't read so well but I like pretty pics of parts. Jeff[/quote] Ya, OK. I just set up a pic server so I'll start posting pics soon. Wish we could post direct so I don't have to try and manage so many sites. Ain't there no way to do that here?

82Waggy

BTW, I also had my 390 machine work done at the same time. What a financial mistake that was. I always seem to bite off more than I really want to chew at the same time. For now the 390 is on hold until I get my Jeep runnin.

82Waggy

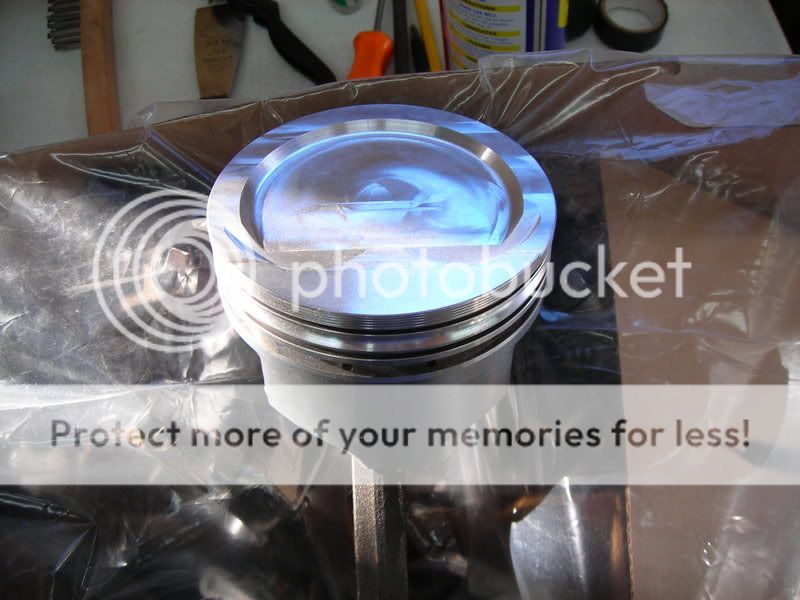

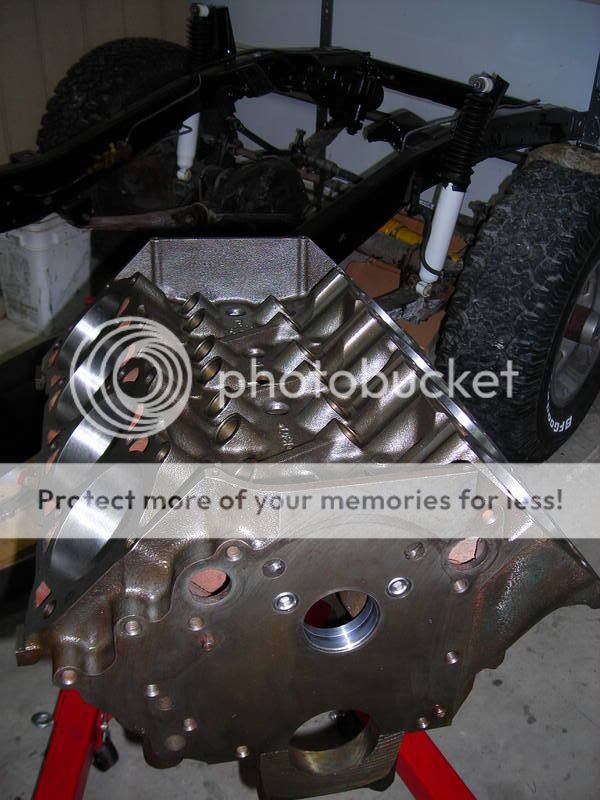

Here's some pics! Table of Goodies. That's my 390 block freshly machined and bagged at the left end. [img]http://i142.photobucket.com/albums/r107/82Waggy/401/4010017.jpg[/img] Here' my 401 block on the stand. Note the lack of a Valley Bypass Line LOL! That's my 82Waggy chassis behind the block, freshly stripped and painted - waiting to put on 4" springs and install new gears with a Power Lok diff in the back before I paint the suspension stuff. [img]http://i142.photobucket.com/albums/r107/82Waggy/401/401blk.jpg[/img] MPEFI by Edelbrock, courtesy of Bulltear< Best Price I found from them. [img]http://i142.photobucket.com/albums/r107/82Waggy/401/MPEFI.jpg[/img] The now growing in fame KB354 piston! [img]http://i142.photobucket.com/albums/r107/82Waggy/401/KB354.jpg[/img] Pretty .9272" pin bushing with .0007" fit. No bushing oiling holes used - they just show the rod where to crack! :shock: [img]http://i142.photobucket.com/albums/r107/82Waggy/401/KBBUSHNG.jpg[/img]

Blown7

:lo1l: I like the EFI !!! Good choice to bring the engine into the 21 st century. Jeff

crownedclown68

very nice indeed. i too am building a pro flo 401. i just got done tearing the old girl down, and have already purchased my mpefi (pace), thats actually how i found your post, someone directed me to your post because i was looking for a build list, wah lah, here i am. Thats truly a impressive list, what type of numbers are u trying to achieve? i am trying to reign in about 400 ponies and even more in torque. im still researching different options/combos. what were u going for, as far as usage? street, offroad, both, leaning further one way than the other? i look forward to hearing how yours turns out and any imfo. you might share. until then good luck. thankyou, wayne 76 chief [email]crownedclown68@msn.com[/email]

fuzz401

buy a ring filer for the top rings you will need a .027 ring gap

82Waggy

Somewhere in the forum is a dyno sheet for a 401 that made over 420 ft bs at 3400 and about 350hp at around 4400, as I recall. This engine used a comp X260 cam, a 670 Holley carb, performer manifold, Edelbrock heads, and about 9:1cr with speed pro pistons. I'm doing some extensive work on stock AMC 090 head castings, using a cam with a little more lift and tighter hydraulic intensity that should grind out some additional torque, the MPEFI of course, and probably a little better quench than the dyno motor. Should make at least the same if not slightly better numbers. I'm shooting for best torque at a lower rpm and do not expect much over 350 peak hp. Just received my Rollmaster timing set today and have everything else I need on the way from Bulltear to finish the engine. Tranny and Txfr case are done. Also have my 4" lift kit, new diff gears, and other miscellaneous stuff on the way from BJ's to finish the chassis - and the body man is finally hard at work. Should be running in July, knock on wood. Now I just need to pick a body color and get on with it.

donwag

Very nice plan. That would be me with the dyno'd 401. It is in a 89 GW and I am very pleased with the performance. I actually have another 401 at the machine shop now with the KB pistons and AMC steel heads with some work being done. I thiink it will make more power and torque than the last bulld with the stock pistons and Eddy heads. Where did you get "Pan Gasket, 1pc Rubber SCE?" Did not know you could get a one piece pan gasket for an AMC.

Mudrat

Please educate the un-washed (me) ... what is "CHS"

jeepsr4ever

Oh YEAH... Looking good!

82Waggy

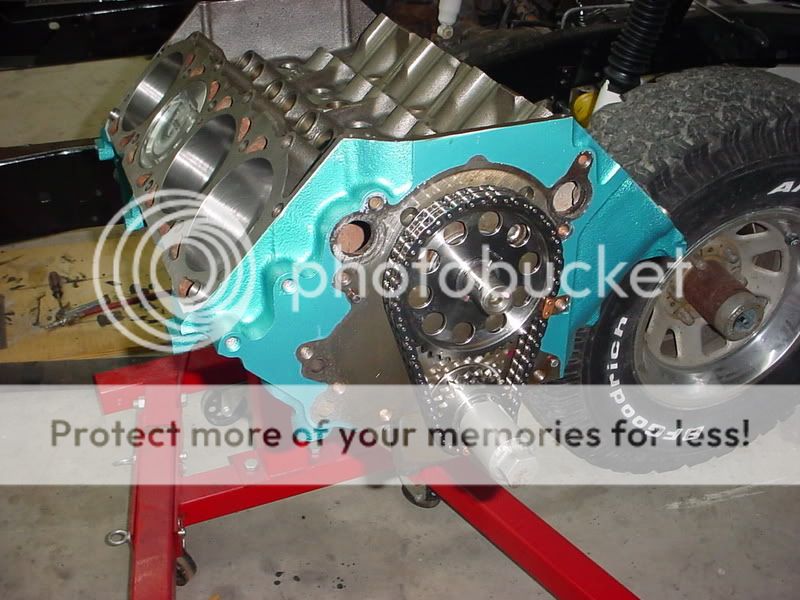

Here's the latest: [img]http://i142.photobucket.com/albums/r107/82Waggy/401/sblk.jpg[/img] Managed to misunderstand the timing marks on the Rollmaster and installed it a few teeth off. It has 4 advanced and 4 retard settings, requiring that you choose an appropriate crank keyway and then match the appropriate unmarked tooth to the timing mark on the cam sprocket. Trying to get a 108 centerline and the Rollmaster indexing sheet sucks. Recognized it was wrong and now have to pull it off again.

82Waggy

[quote=donwag]Very nice plan. Where did you get "Pan Gasket, 1pc Rubber SCE?" Did not know you could get a one piece pan gasket for an AMC.[/quote] Not sure I have. I don't beleive the listing I ordered it from - we'll see what actually arrives. Update 05/19/07: Nope. 1pc pan gasket not available. Got SCE 4pc set.

82Waggy

[quote=Mudrat]Please educate the un-washed (me) ... what is "CHS"[/quote] I listed some of the vendors by accident - the result of copy and paste from an Excel spreadsheet. CHS = "The Cylinder Head Shop & CHS Racing Engines", the machine shop I use and that I have been moonlighting at.

82Waggy

[quote=jeepsr4ever]Oh YEAH... Looking good![/quote] Need more parts!!! :?

jeepsr4ever

:wink: Should be there very soon!

82Waggy

Cool!! =D>

Mudrat

[quote=82Waggy][quote=Mudrat]Please educate the un-washed (me) ... what is "CHS"[/quote] I listed some of the vendors by accident - the result of copy and paste from an Excel spreadsheet. CHS = "The Cylinder Head Shop & CHS Racing Engines", the machine shop I use and that I have been moonlighting at.[/quote] Gotcha - mine just goes by "The Head Shop" and their sign is rather 60's looking psyco colors :wink:
