Prestolite/Motorcraft Ignition Module Pin-out

jayhawkclint

I've got a Jeep with a transplant 360 V8 from an unknown Wagoneer donor. It's got an ignition module with cast aluminum cover that appears to be either Prestolite or Motorcraft, I'm not sure which. I need the pin-out for these units. Anyone know where to find them? Thanks in advance.

jayhawkclint

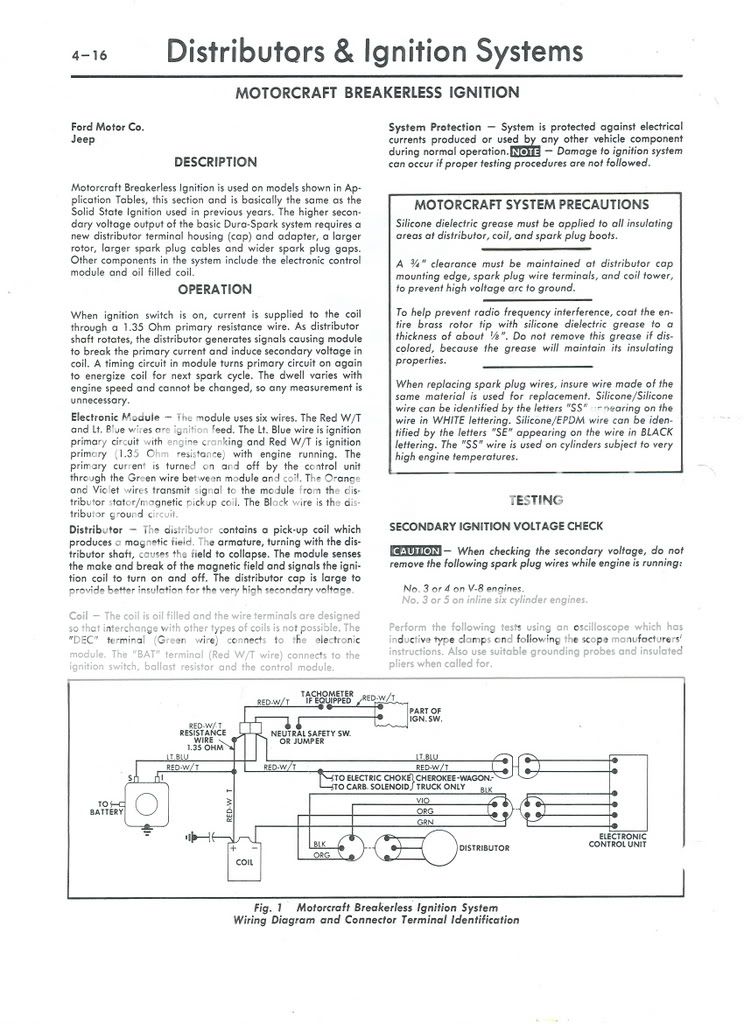

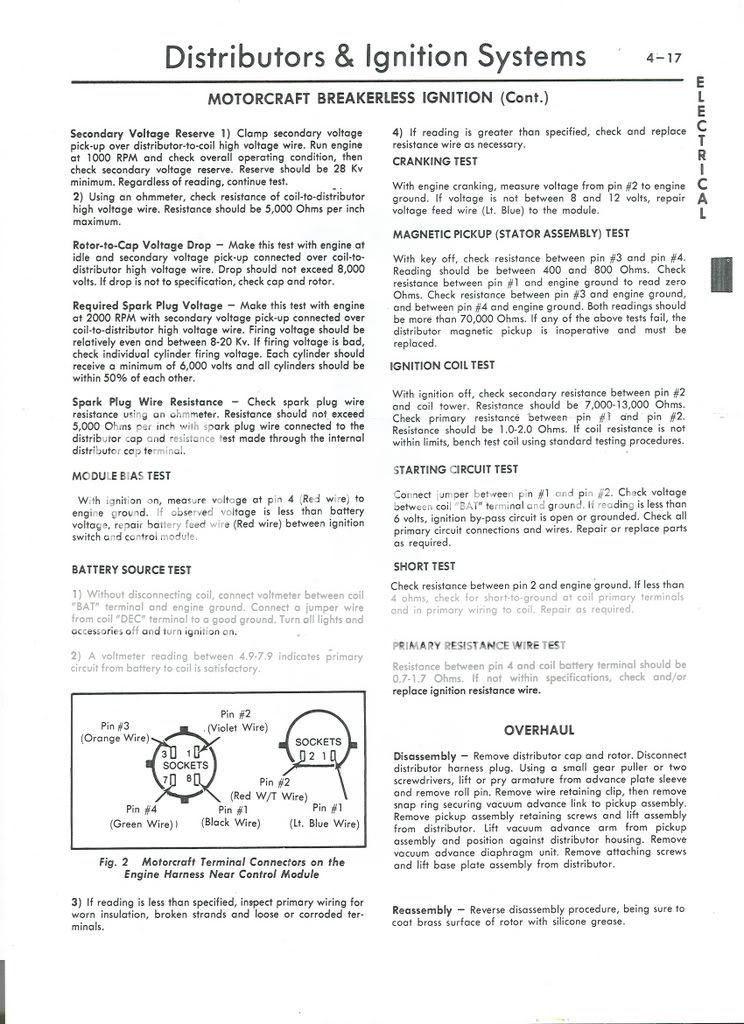

Turns out I've got a MotorCraft. Here is the pinout in case anyone else is looking.

Moderators: Is there an archive to store this kind of stuff?

Here is the URL if you want to save them:

https://forum.bulltear.com/assets/migrated-images/IgnitionDiagrampg1_b6828812.jpg
https://forum.bulltear.com/assets/migrated-images/IgnitionDiagrampg2-1_3358a801.jpg

jeepsr4ever

Thanks much for the photo and links I stickied your post.
