Dogleg header flanges - Stahl

Holeshot

I saw somewhere on the board that you guys were considering making these.

Stahl beat ya to it, ...

http://www.stahlheaders.com/Web%20Flange%20Other_1.html

Stahl maintains a great deal of tech data here...

http://www.stahlheaders.com/Tech_data.htm

jeepsr4ever

http://www.bulltear.com/catalog/product_info.php?products_id=180

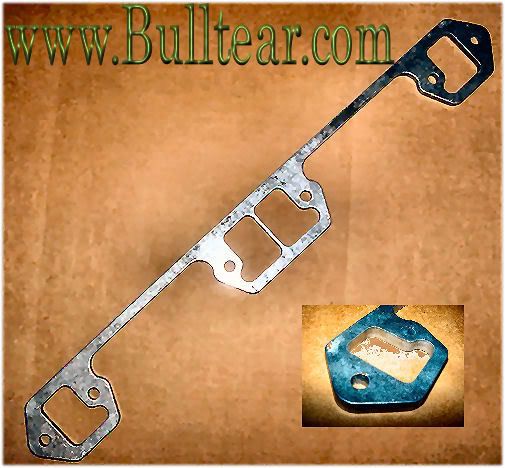

We offer them in a 3/8 thick finished with either a flat or flat/machined ridge. Our are made from the factory print and are perfect for porting or custom headers. These have been made in the past but none have matched perfectly.

Holeshot

For those purchasing header flanges, here is a good *.pdf (Acrobat) file explaining how to fit and weld the pipe to the flange:

http://www.stahlheaders.com/docs/roundtubesquarehole.PDF

jeepsr4ever

That is some old school forming :idea: Dave a mandrel is alot faster and will offer a better port. :t:

Blown7

Holeshot wrote
For those purchasing header flanges, here is a good *.pdf (Acrobat) file explaining how to fit and weld the pipe to the flange:

http://www.stahlheaders.com/docs/roundtubesquarehole.PDF

God almighty talk about a Blacksmith mentality. :smile:

Way to do it better

Jeff

Blown7

jeepsr4ever wrote
http://www.bulltear.com/catalog/product_info.php?products_id=180

We offer them in a 3/8 thick finished with either a flat or flat/machined ridge. Our are made from the factory print and are perfect for porting or custom headers. These have been made in the past but none have matched perfectly.

Whats a "sealing groove"?

Jeff

jeepsr4ever

Its a ballmilled channel (using a .125 BEM) to seat the gasket firmly in place.

Rogue Racer

Headers by Ed has some nice looking stuff for the AMCs.

https://www.headersbyed.com/hdrs.htm

jeepsr4ever

Yet another option

Blown7

jeepsr4ever wrote

Yet another option

Them sure is purrrttyyy
Coupla of questions.
Why did you leave material in between the siamese ports? (There really isn't enough room to jam a decent size tube in those doglegs)
Will you make me some out of Stainless?

jeepsr4ever

Jeff theres plenty of room :mrgreen: The reason is backpressure my friend. When you open up the space between doglegs you have created a imbalanced backpressure and that can cause some strange issues at high rpms. On the stainless steel flanges.... Heck no stainless is hard to laser out. :sa:

Holeshot

What!!! No water-jet????

jeepsr4ever

Holeshot wrote
What!!! No water-jet????

Too much kerf with a waterjet

Holeshot

What be "kerf"??? :hairhair3:

Goose

the actual gap or space removed by the cut..(reduces the amount of angle you can cut

Blown7

jeepsr4ever wrote
Jeff theres plenty of room :mrgreen: The reason is backpressure my friend. When you open up the space between doglegs you have created a imbalanced backpressure and that can cause some strange issues at high rpms.

No MC I wasn't implying leaving them open...
You bring both tubes together in the middle and weld up the area in between. It's pretty hard to get 2 2inch tubes together
See what I had to do then I had to bridge a weld between the tubes

Jeff

jeepsr4ever

Nope I understand Jeff. :wink:

Mudrat

What kind of tubing are you using to make the exhaust up to the collector? Short or long runs?
